Contact composition: 2Z; 3Z; 4Z
Contact resistance (initial): ≤ 100mΩ
Contact material: Silver alloy
Rated control capacity (resistive load): 6.5A (HHN68B), 10A (HHN68BVL), 12A (HHN68AVL)
5A 240VAC 28VDC（HHN68B,HHN68BVL）
Maximum allowable voltage for contacts: 240VAC 28VDC
Insulation resistance (initial): 1000m Ω (500VDC)
Temperature rise of coil (at 70 ℃): ≤ 85K
Action time (at 20 ℃): ≤ 20ms
Reset time (at 20 ℃): ≤ 15ms (DC type), ≤ 25ms (AC type)
Mechanical lifespan: ≥ 107 (frequency 300 times/minute)
Electrical lifespan (at rated control capacity): ≥ 105 (frequency 1 second on, 1 second off)
Rated voltage (V): DC12V; DC24V; DC110V; DC220V;
AC12V; AC24V; AC110V; AC220V
Rated current ± 10% (MA): 75; 37.5； 8；4；
100； 50；10.9； five point four
Rated resistance ± 10% (Ω): 160; 640； 13750； fifty-five thousand
42；168； 3532； fourteen thousand two hundred and fifty-nine
Rated power consumption (W): 0.9W 1.2VA
Maximum suction voltage (V): below 75% and below 80%
Maximum release voltage (V): above 10% and above 30%
Maximum allowable voltage (V): rated voltage x 110%
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

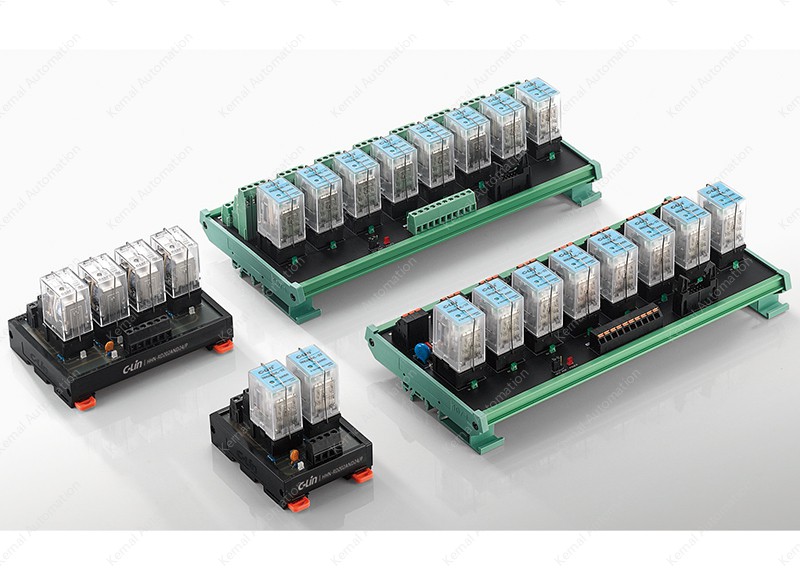

Relay
HHN-RD2
HHN-RD2
Subscribe to get pricesModel: HHN-RD2
Order No: HHN-RD2
SKU: 1736126735548510953
Condition: New Sealed Under Guarantee
Size: 20.00 mm，11.00 mm，6.00 mm
Weight: 10.00g
Product Selection Engineer：LiaoJF
In Stock
Brief Introduction
HHN-RD2
Contact composition: 2Z; 3Z; 4ZContact resistance (initial): ≤ 100mΩContact material: Silver alloyRated control capacity (resistive load): 6.5A (HHN68B), 10A (HHN68BVL), 12A (HHN68AVL)5A 240VAC 28VDC（HHN68B,HHN68BVL）Maximum allowable voltage for contacts: 240VAC 28VDCInsulation resistance (initial): 1000m Ω (500VDC)Temperature rise of coil (at 70 ℃): ≤ 85KAction time (at 20 ℃): ≤ 20msReset time (at 20 ℃): ≤ 15ms (DC type), ≤ 25ms (AC type)Mechanical lifespan: ≥ 107 (frequency 300 times/minute)Electrical lifespan (at rated control capacity): ≥ 105 (frequency 1 second on, 1 second off)Rated voltage (V): DC12V; DC24V; DC110V; DC220V;AC12V; AC24V; AC110V; AC220VRated current ± 10% (MA): 75; 37.5； 8；4；100； 50；10.9； five point fourRated resistance ± 10% (Ω): 160; 640； 13750； fifty-five thousand42；168； 3532； fourteen thousand two hundred and fifty-nineRated power consumption (W): 0.9W 1.2VAMaximum suction voltage (V): below 75% and below 80%Maximum release voltage (V): above 10% and above 30%Maximum allowable voltage (V): rated voltage x 110%
